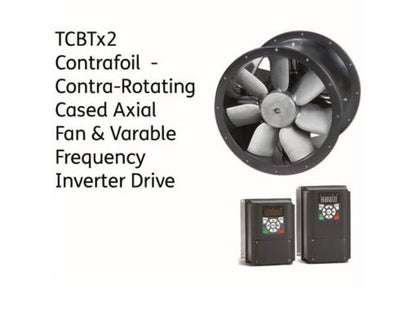

S&P TCBTx2/4-630 + Variable Frequency Inverter Package
S&P TCBTx2/4-630 + Variable Frequency Inverter Package
Couldn't load pickup availability
Variable Frequency Inverter for precise airflow control and efficient ventilation
The S&P TCBTx2/4-630 with Variable Frequency Inverter Package is an exceptional ventilation solution, specifically designed for industrial and commercial kitchen extraction. This range of cylindrical cased axial fans is constructed from high-grade rolled galvanized steel, fitted with durable aluminum impellers, and protected against corrosion with a cataforesis primer and black polyester paint finish.
Key Features:
- Robust Construction: Manufactured from high-grade galvanized steel and fitted with die-cast aluminum impellers.
- Corrosion Protection: Coated with cataforesis primer and a black polyester paint finish for enhanced durability.
- Contra-Rotating Impellers: Equipped with two contra-rotating complementary impellers for optimized airflow.
- Pre-Wired for Easy Installation: Supplied with a pre-wired junction box located on the exterior of the casing for easy wiring access.
- Versatile Motor Options: Available with single or three-phase motors, offering flexible installation options for various applications.
- Temperature Range: Operates efficiently in extreme temperatures, from -40ºC to 70ºC.
Motors:
- IP65 Rated: Ensures protection against dust and water, ideal for demanding environments.
- Class F Insulation: Provides enhanced heat resistance.
- Thermal Protection: Motors come with built-in thermal protection for added safety.
- Single Phase: 230V-50Hz, variable voltage (except TCBBX2/4-630).
- Three Phase: 230/400V-50Hz, compatible with inverter control.
Comes Complete With:

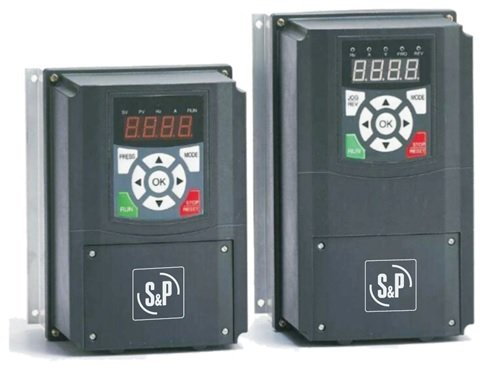

- 2.2kW 230V Inverter: A powerful 1-phase to 3-phase inverter, capable of handling up to 10 amps.
Technical Specifications:
Specification | Detail |
---|---|
Max Airflow | 7,246 m³/hr |
Airflow/Pressure | 1.77 m³/s @ 200 Pa |
Absorbed Power | 1309 W |
Max Current | 5.2 Amps |
Sound Pressure Level | 67 dB(A) |
Fan Unit Weight | 42 kg |
Warranty:
- 3-Year Manufacturer's Warranty: Ensuring long-term reliability and peace of mind.
The S&P TCBTx2/4-630 is a powerful and efficient ventilation system, perfect for large-scale kitchen extraction needs. Its robust design, advanced motor technology, and easy installation make it an ideal choice for both industrial and commercial kitchens. With a built-in inverter for precise speed control, it offers unmatched performance in managing airflow and pressure, even in the most demanding environments.
