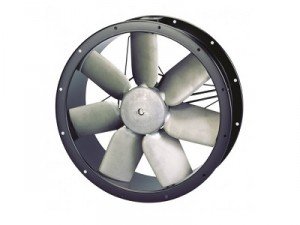

Case Mounted Axial Fan
TCBB/4
Sizes 250mm-630mm
Single Phase 4 Pole
The compact design of this cylindrical cased axial fan allows for easy installation especially within restricted spaces.
The TCBB/4 cylindrical cased axial fans are fitted with aluminium impellers and manufactured from high grade rolled galvanised steel and protected against corrosion by cataforesis primer and black polyester paint finish. These single-phase axial fans are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.
The single-phase motor inside this cylindrical cased axial flow fan has an external rotor motor, IP65, Class F, thermal protection, working temperature from -40ºC to +70ºC.
Range of cylindrical cased axial flow fans fitted with aluminium impellers and manufactured from high grade rolled galvanised steel and protected against corrosion by cataforesis primer and black polyester paint finish.
All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.
Available, depending upon the model, with single or three phase motors in 2, 4 or 6 poles.
Motors
Single phase motor (TCBB)
Models 250, 315, 355 and 400: External rotor motor, IP44, Class F, thermal protection, working temperature from -40ºC to +40ºC.
Models 450, 500, 560, 630 and 6/710: IP65, Class F, thermal protection, working temperature from -40ºC to +70ºC.
Models 4/710 and 800: IP55, Class F, working temperature from -40ºC to +40ºC.
All motors are speed controllable by autotransformer except models /4-560H, /4-630, 710 and T/800.
Three phase motors are speed controllable by inverter.
Electrical supplies:
Single phase 230V-50Hz.
(Capacitor located inside the wiring terminal box).
Additional information
Standard air direction: form (B)
configuration
(impeller over motor).
